BESS solutions from ELINEX Power Solutions

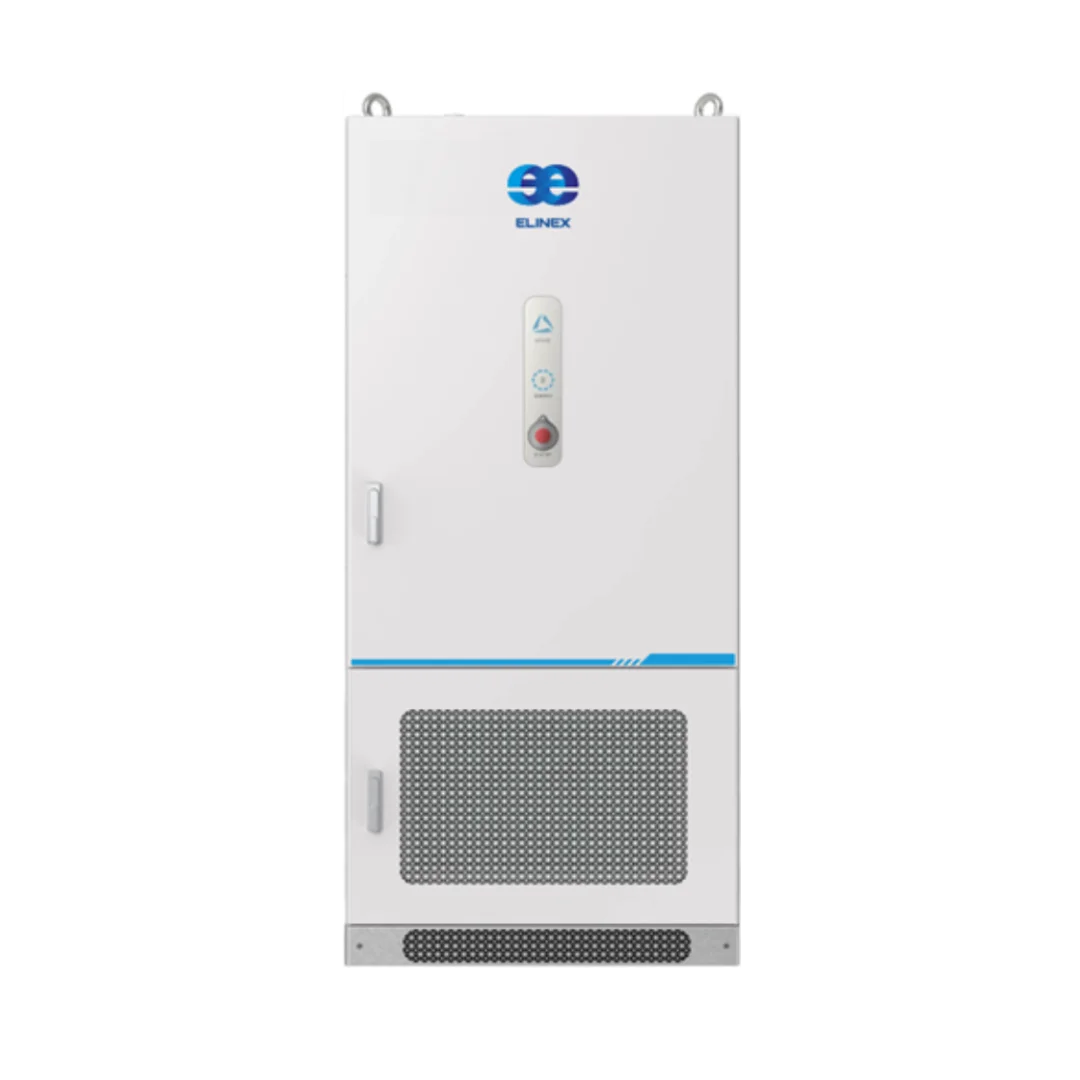

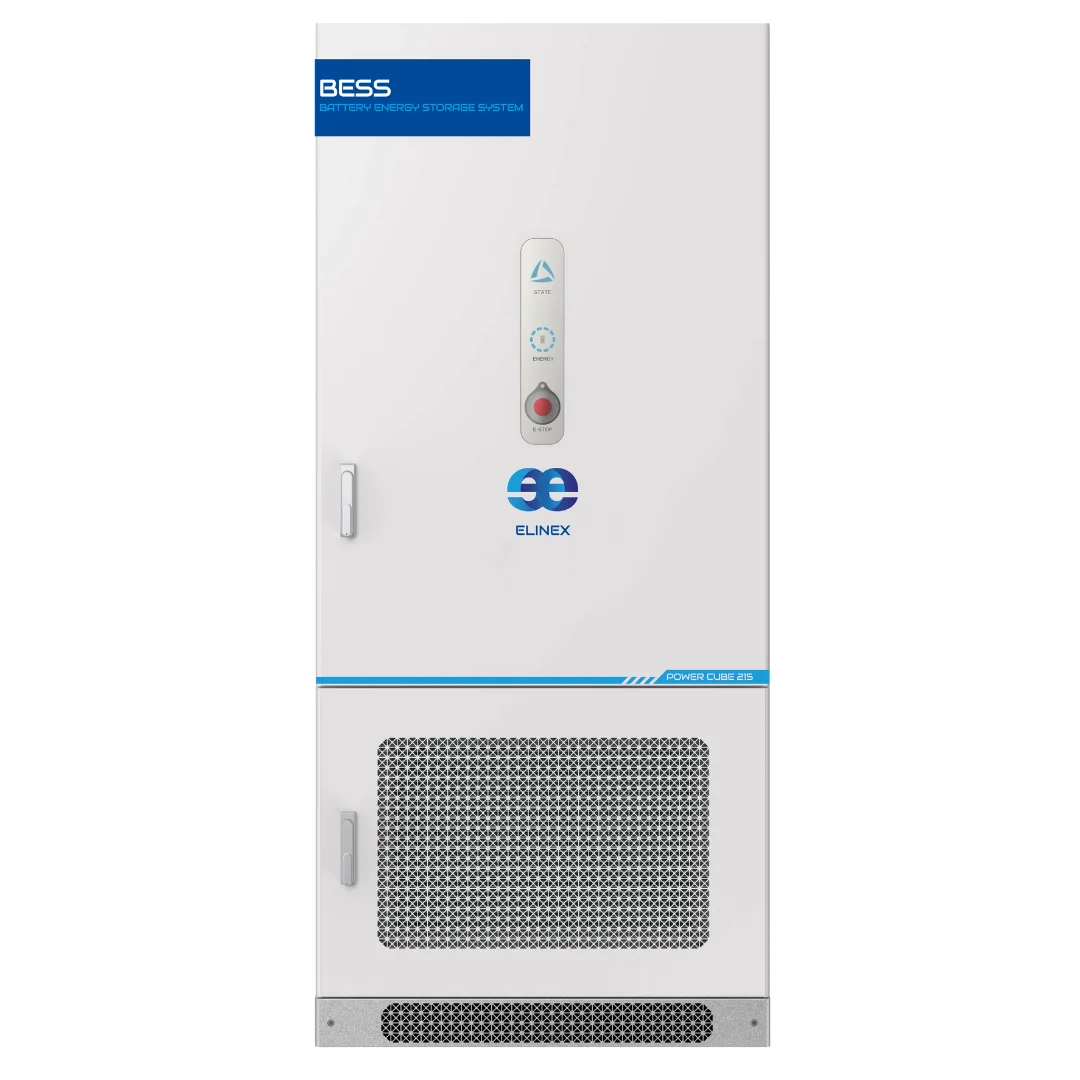

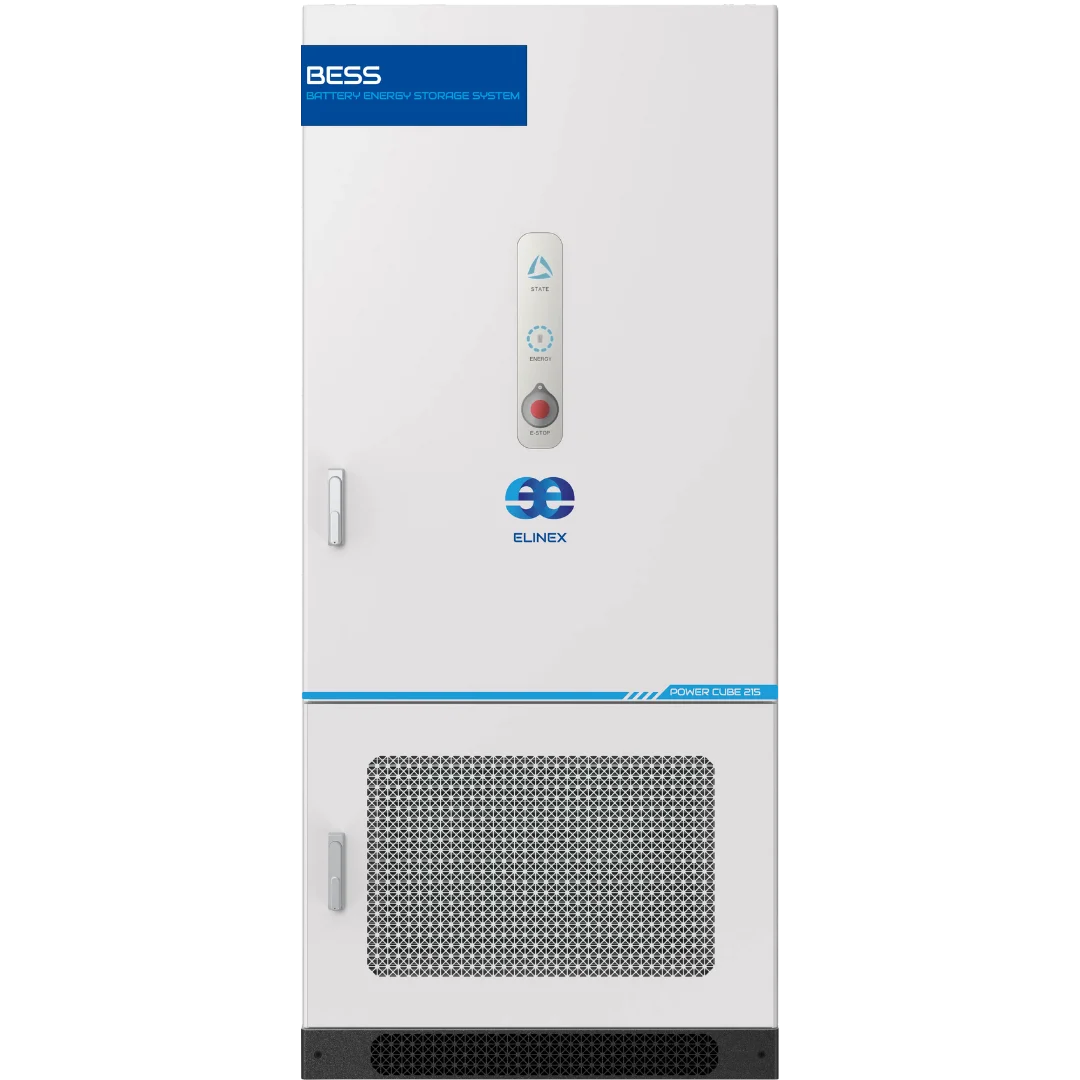

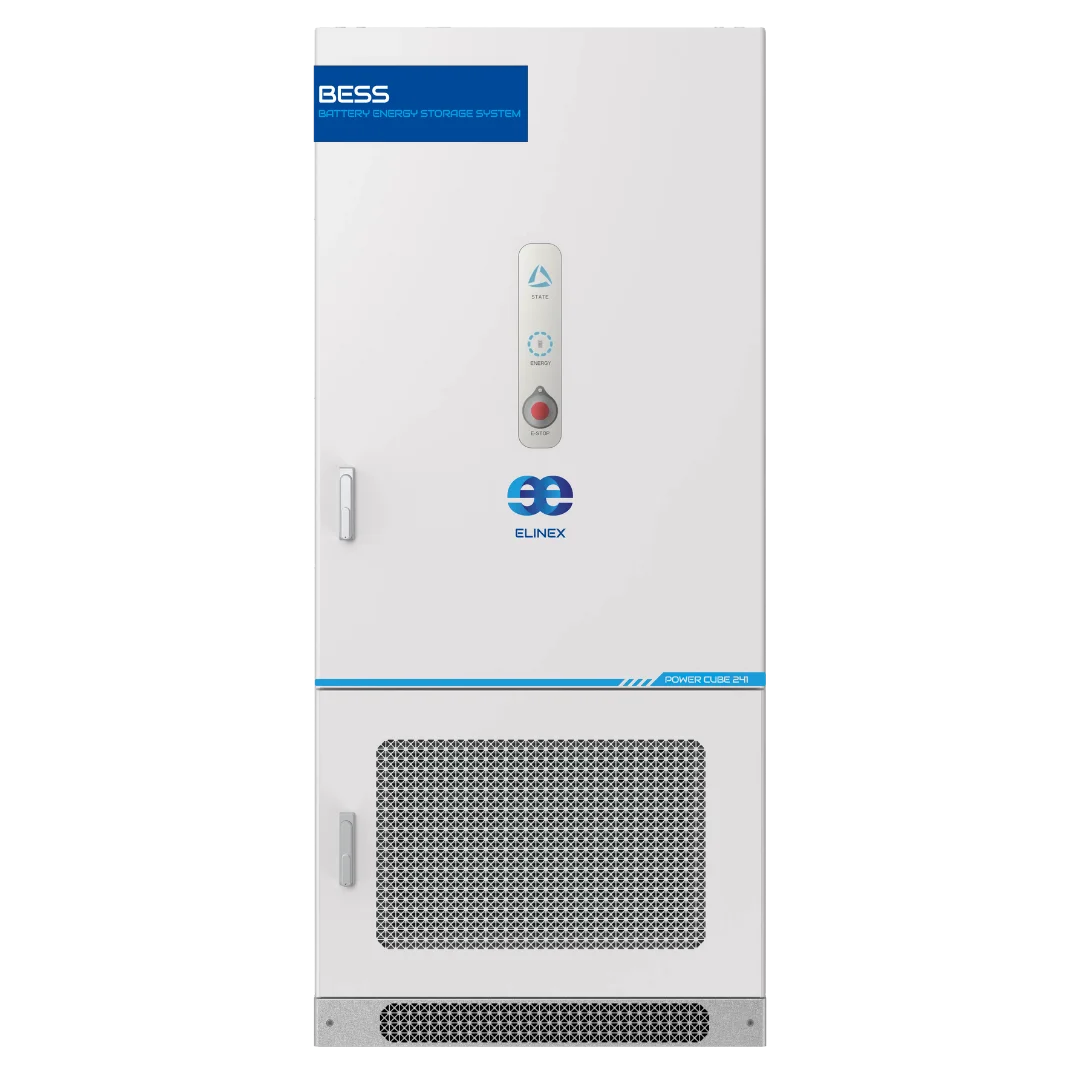

ELINEX POWER CUBE 215
The ELINEX POWER CUBE 215 energy storage system provides reliable energy storage for commercial and industrial applications. With a capacity of 215 kWh and an efficiency of 90.2%, it meets large energy needs. This BESS solution operates reliably between -35℃ and 55℃ and has an IP54 protection rating, ensuring excellent protection against dust and water.
This advanced BESS system provides full cell status monitoring and multiple fire protection for maximum safety. The battery has an IP67 protection rating and the PCS an IP66 protection rating. Thermal management maintains a temperature differential of ≤3°C within the system, ensuring optimum performance and longer life.
The all-in-one design with high power density takes up only 1.3m², providing flexible transport options and quick, cost-efficient installation. This energy storage system is easy to combine and flexibly expand, providing an ideal solution for a variety of energy needs.

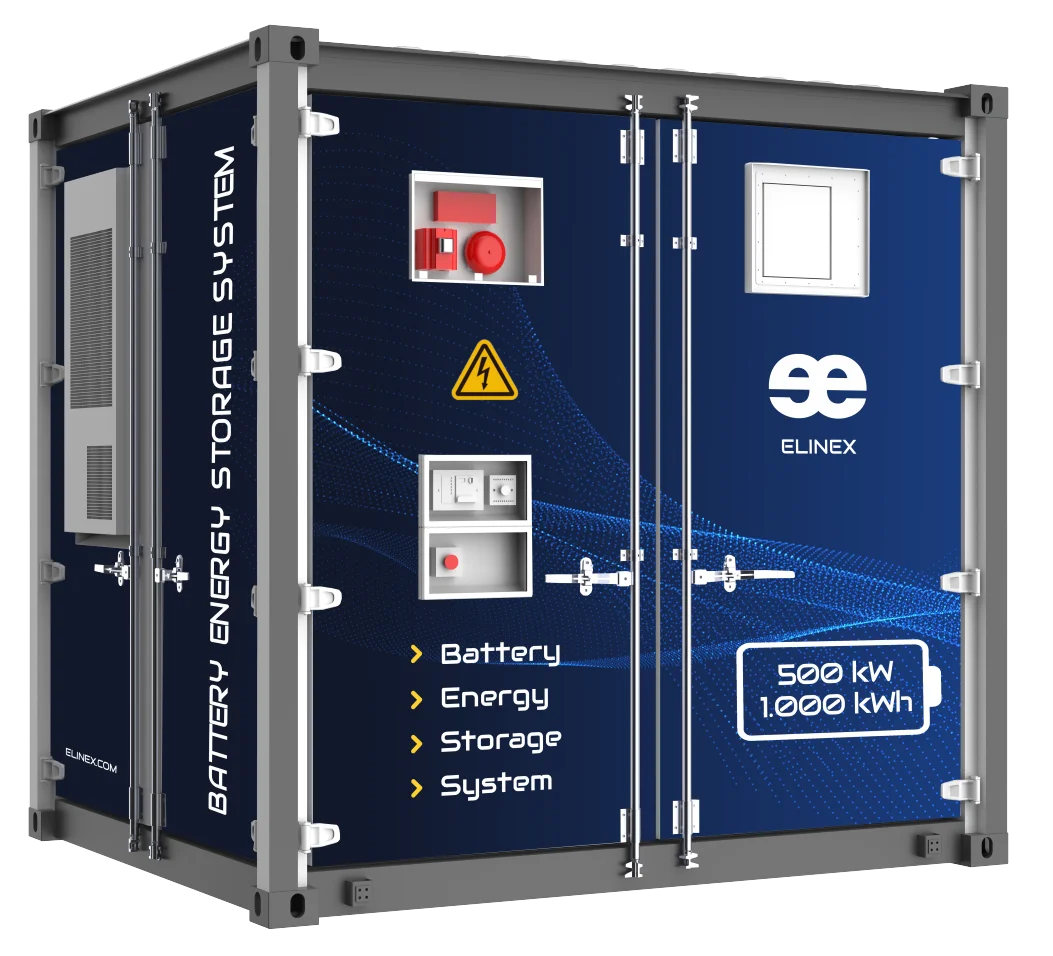

ELINEX POWER CUBE 1000
The ELINEX POWER CUBE 1000 offers flexibility to be deployed anywhere in the grid, supporting emergency power, energy stabilisation, energy shifting, peak shaving and grid stabilisation. In addition, this 10 ft. container solution is also ideally suited for trading on the energy imbalance market. The container solution is designed based on the needs of the energy sector. This makes for a highly efficient, cost-effective and scalable solution. The container comes plug and play and has a 500kW inverter and 1,000kWh battery capacity.
The POWER CUBE 1000 includes a Power Converter System (PCS), fire protection, cooling and an Energy Storage Solution (ESS) based on LifePo4 lithium-ion technology. This system meets all PGS 37-1 standards and is therefore fully certified for the Dutch market.

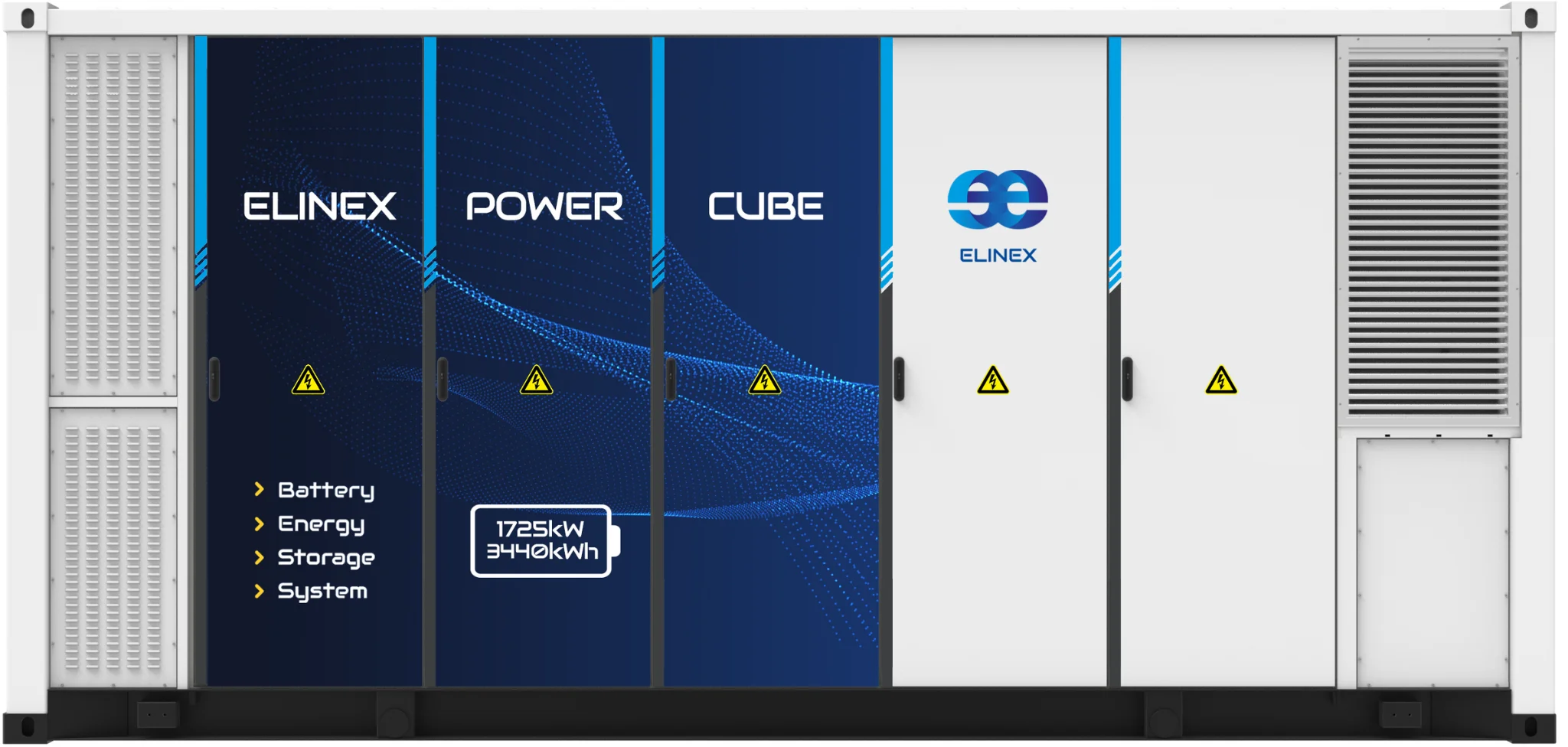

ELINEX POWER CUBE 2000-3440
The ELINEX POWER CUBE 2000-3440 is an advanced energy storage system with a rated energy capacity of 2000 to 3440 kWh and a charge/discharge rate of 0.5C. This BESS uses liquid cooling for thermal management.
The liquid-cooled ESS container consists of 9 or 10 battery racks, each with a capacity of 344 kWh. Each rack contains 8 battery packs of 43 kWh, composed of 4 CATL battery modules each containing 12 TIER 1 LFP battery cells from CATL. This provides a robust and reliable energy storage solution. This BESS features a comprehensive safety design, including battery cell, battery packs, BMS and fire protection.The POWER CUBE 2000-3440 is capable of various energy storage scenarios, including peak and frequency modulation, stable power output, grid support and peak load shifting. This makes it a versatile and efficient solution for commercial and industrial applications.

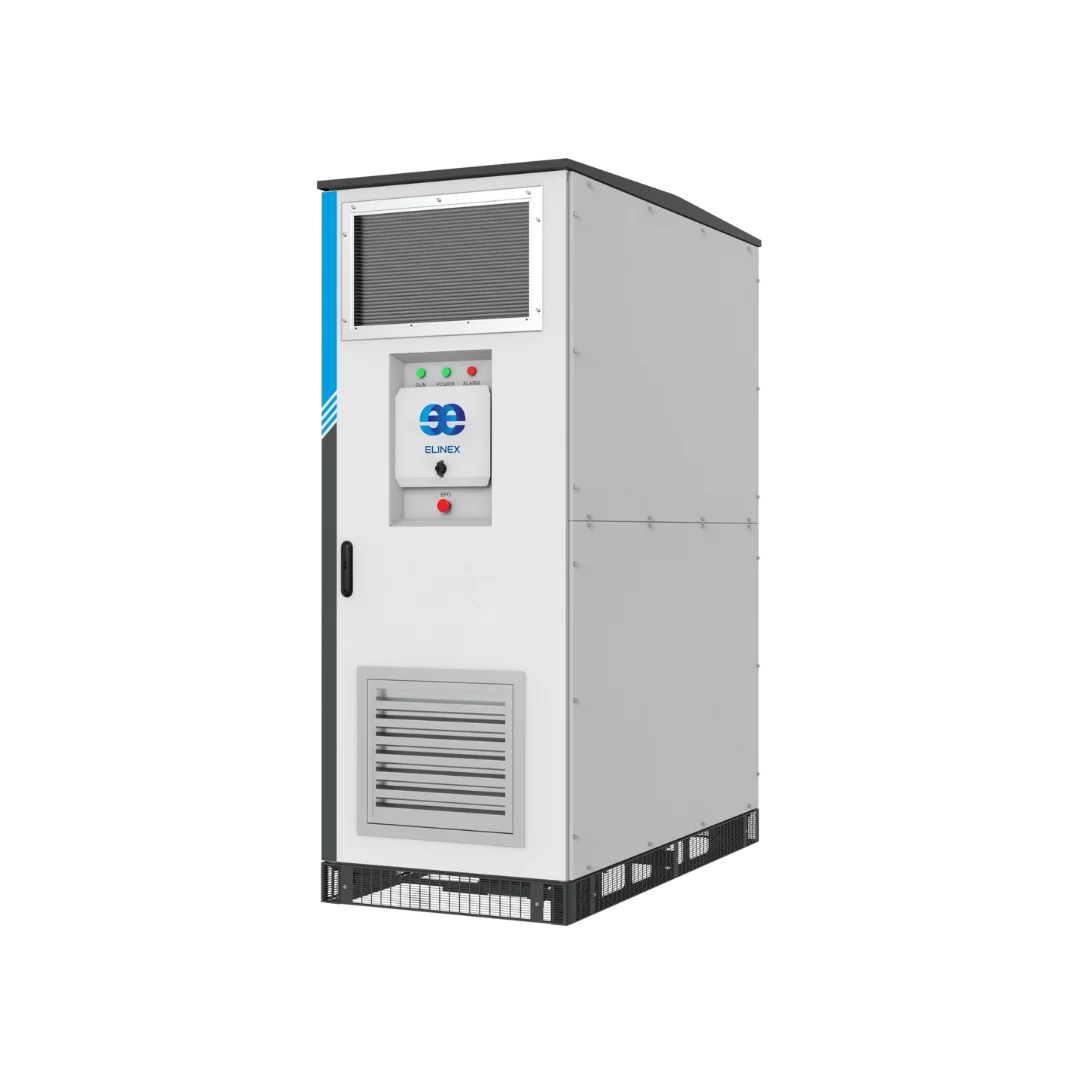

ELINEX PCS 1250/ 1500/ 1725 kW
ELINEX Power Converter System offers a smart solution. This system is designed to meet the highest standards of safety, efficiency and reliability.
The ELINEX PCS offers reliable operation under extreme conditions thanks to on-line isolation detection. It supports multi-machine parallel connections and black-start capabilities, and is suitable for various applications such as peak-shaving and frequency modulation. Its efficient layout and secondary circuit integration make it easy to install and maintain.

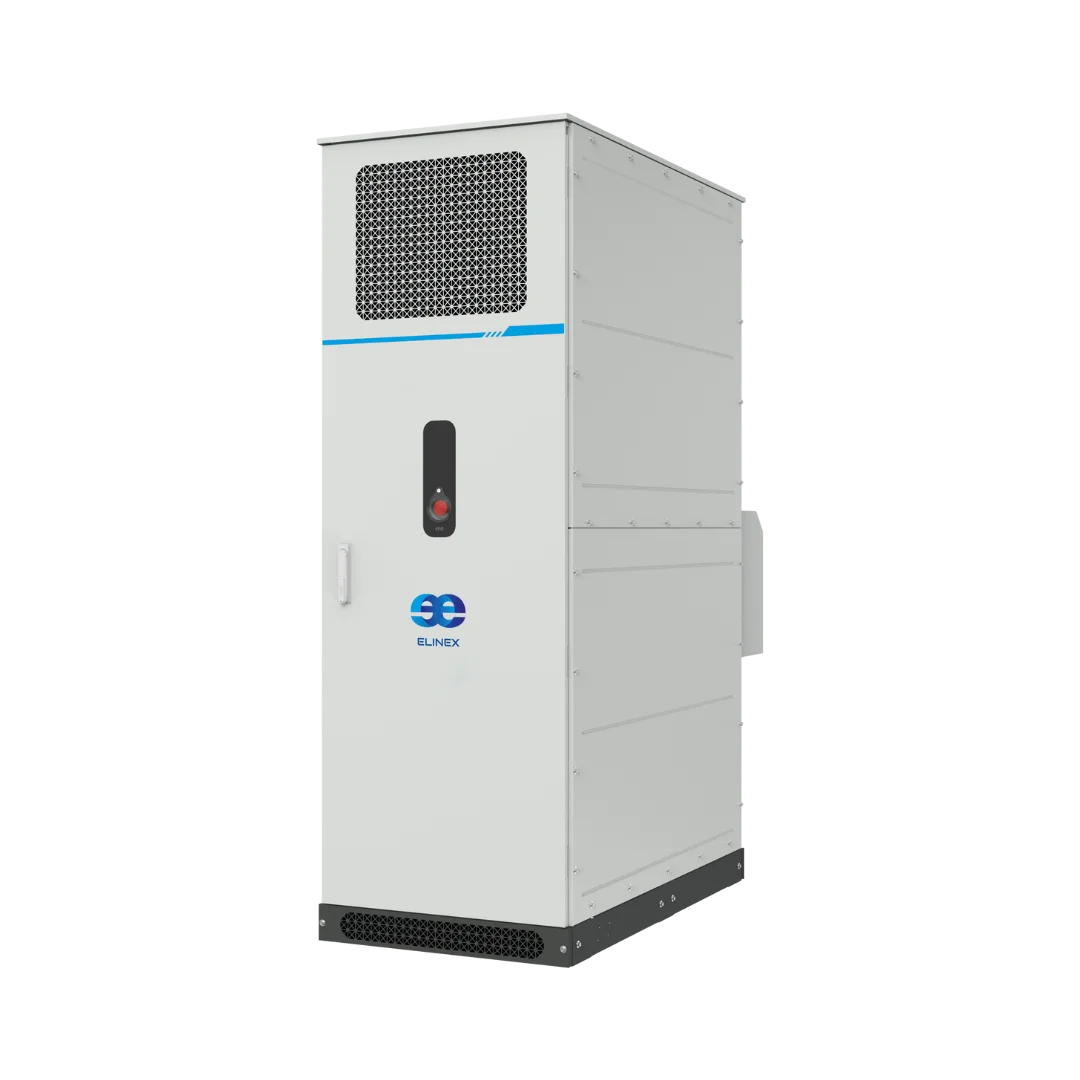

ELINEX PCS 1000/1250kW
ELINEX's PCS 1000/1250kW uses new three-level topology technology, providing maximum efficiency of ≥99%. The system supports 1.1 times overload at 40ºC and has no power loss at 50ºC.
Thanks to intelligent temperature control technology, heat dissipation is evenly distributed. With a high power density and a footprint of only 0.95m², the system is extremely compact. The quad network port communication supports IEC 61850 protocols.
The modular design allows multiple parallel connections and provides millisecond response to EMS commands. The system supports grid-forming functions and multi-mode switching such as VSG, Black-Start, VF and PQ. In addition, it offers online insulation testing for both AC and DC.
Met IP65 bescherming en ondersteuning voor C5 corrosiebescherming is het systeem robuust en betrouwbaar.

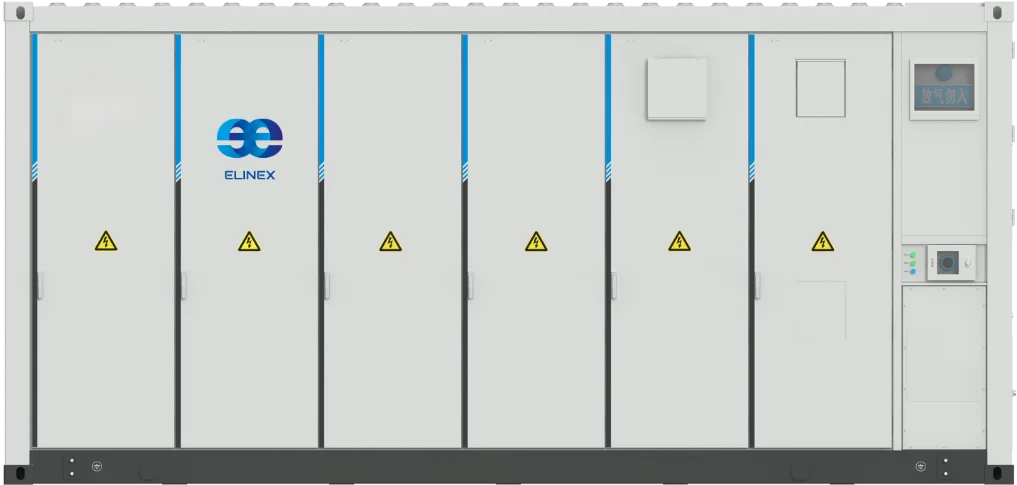

ELINEX POWER CUBE 5000
ELINEX's Power Cube 5000 offers comprehensive design. Thanks to multi-dimensional AI modelling, it proactively analyses the health and safety of batteries and systems. Intelligent battery protection management reduces thermal runout and improves equipment safety.
With the PCS, BMS and EMS linkage, the system provides full monitoring and management throughout.
The intelligent operation and maintenance platform uses AI models for prediction, early warning and preventive measures. The modular design allows batteries to be pre-installed and the entire cabinet to be transported and connected as a single unit.

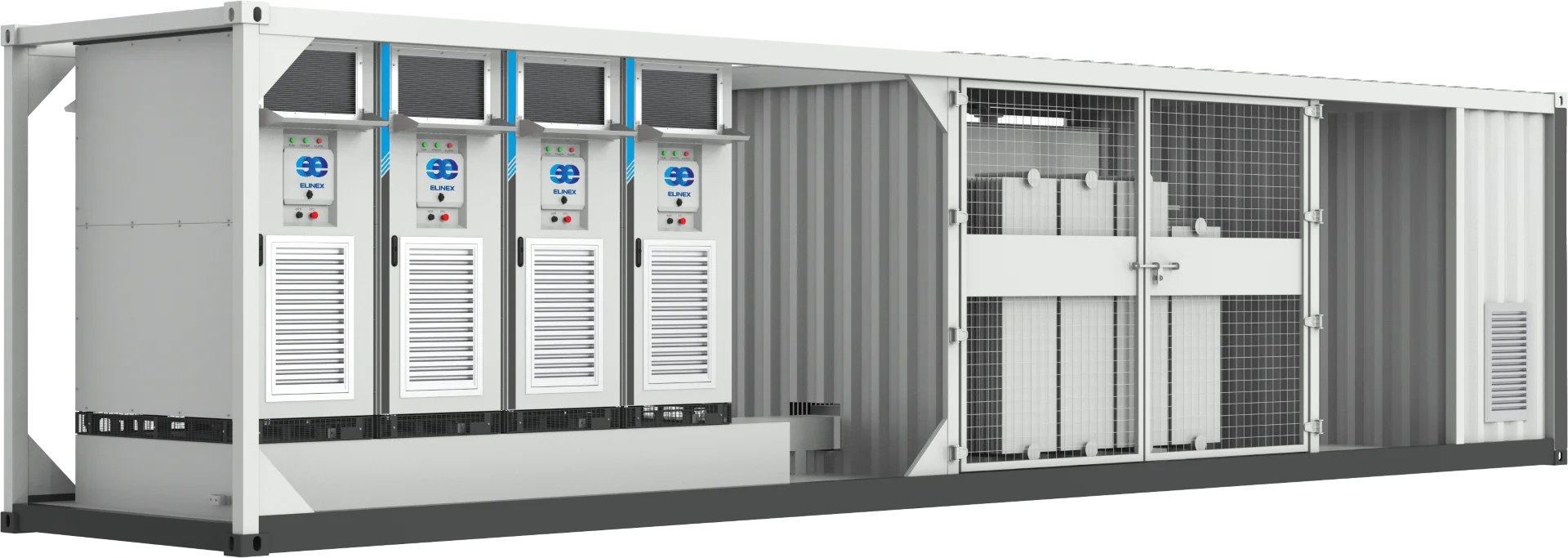

ELINEX PCS 5000
The ELINEX PCS 5000 is an advanced inverter system specifically designed to meet the demands of extreme environments, such as high temperatures, salt and extreme cold. This system provides online isolation detection and real-time transformer condition monitoring, ensuring the reliability and safety of your power supply.
The PCS 5000 ensures stable power grid operation. The system supports multiple functions, including H/LVRT, black-start and VSG, and has an integrated design of inverter and transformer system. This integrated system also includes data collection and optical fibre network.
With a wide DC voltage range and flexible configuration, the PCS 5000 is suitable for various scenarios, including generator-side, grid-side and user-side applications. The system also supports parallel operation of multiple devices, making it a versatile solution for your power needs.
