BESS Solutions from Sunwoda Energy

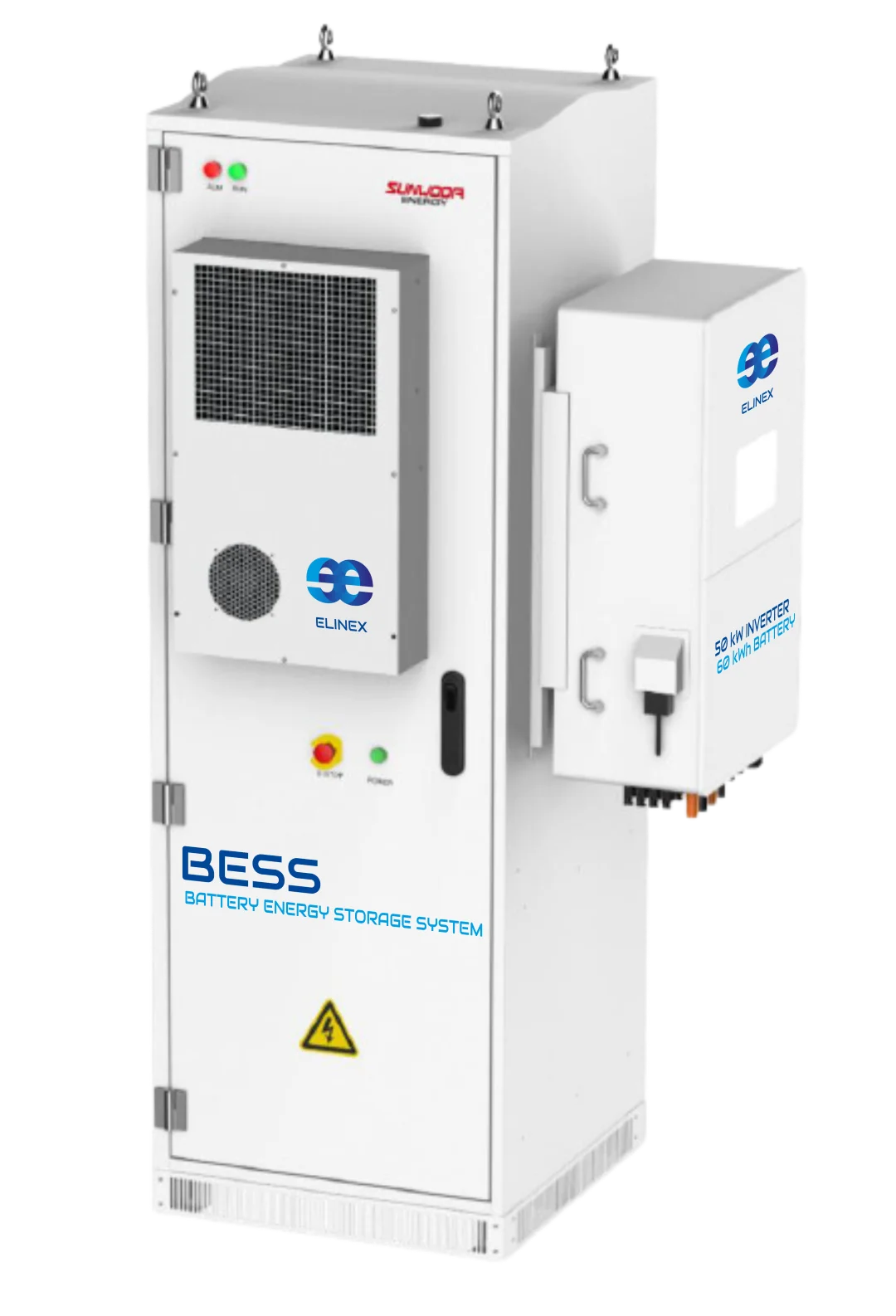

Energy Storage System Sunwoda 60kWh
This solution is made up of several battery racks of 60kWh capacity per rack. Each Battery Rack is equipped with 12 pieces of 5kWh battery pack modules. The battery technology is based on LiFe(PO4) battery cells, or Lithium - iron - phosphate. Sunwoda is manufacturer of both the battery cells and the complete battery solution. Furthermore, the Sunwoda BESS is coupled to a 50kW Deye inverter.
The energy storage system is easy to install and set up. The solution has a unique modular design & flexible function configuration. In addition, this BESS has strong scalability, easy & convenient expansion on both AC and DC power sides

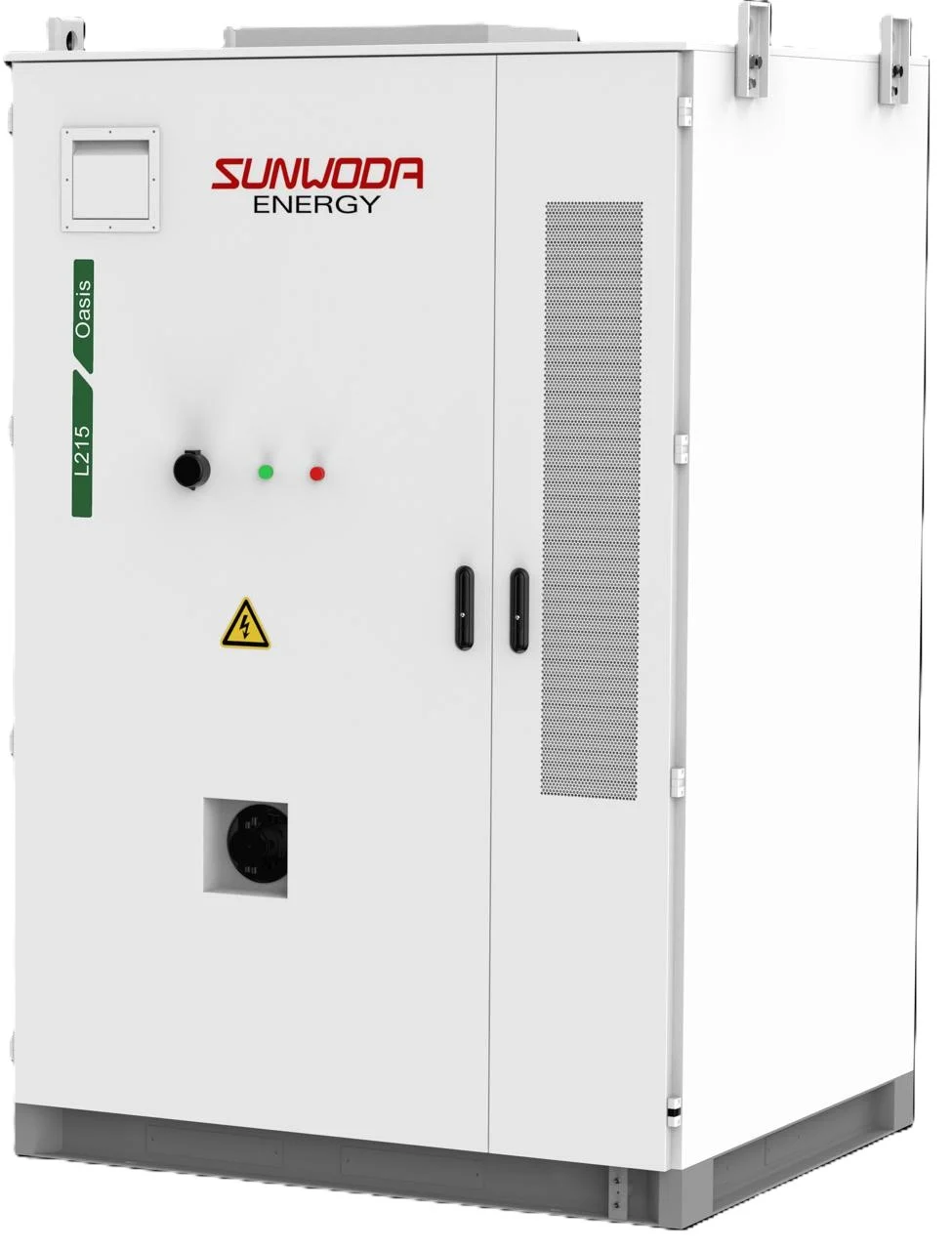

Energy Storage System Sunwoda 215kWh liquid cooled + Oasis Power Inverter Cabinet
The Sunwoda 215kWh BESS is ideal for demand regulation, peak-shaving and Energy Storage for commercial and industrial applications. Combined with the Oasis Power Inverter Cabinet, this system can be used for peak-shaving, off-grid emergency power supply and peak frequency regulation. The battery cabinet uses the latest liquid cooling technology, ensuring easy installation and deployment.
For a safe operation, the system uses LFP (lithium iron phosphate) batteries with five battery modules, liquid cooling systems, fire extinguishing systems, monitoring systems and auxiliary systems. It offers flexible operating options within a voltage range of 672 to 864VDC. This system complies with both IEC and UL standards.

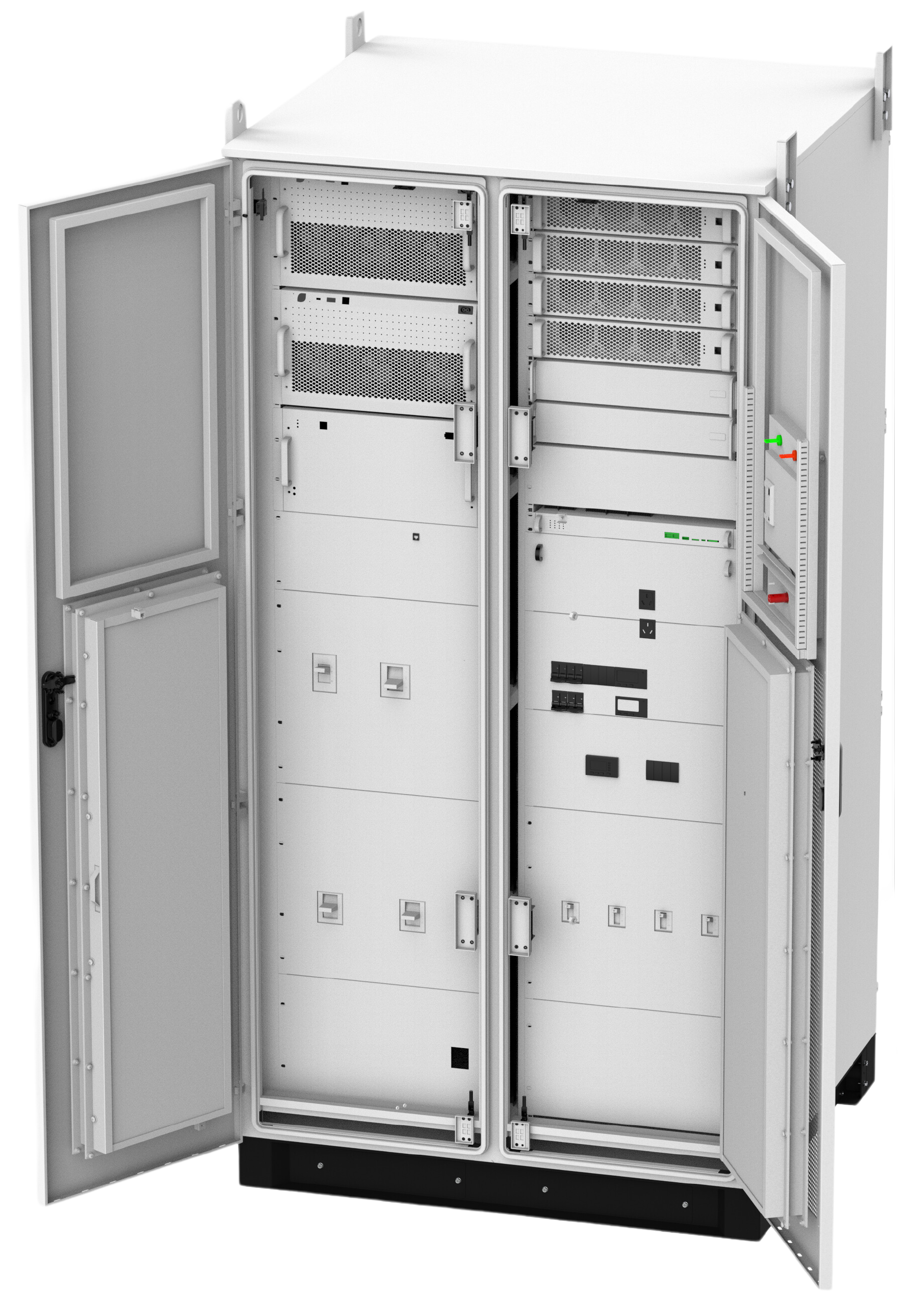

The Oasis Power Inverter Cabinet integrates modules such as PCS, STS, MPPT, UPS and EMS, and supports off-grid, on-grid and hybrid switching, as well as PV applications. It provides capabilities for peak-shaving, self-generation and consumption, emergency power supply and microgrids. The maximum capacity of a single on-grid system is 400kW, and for a microgrid system it is 200kW.
